India's Smart City Mission has transformed how cities approach public amenities, including playgrounds. With 100 cities selected under the mission, standardized playground equipment specifications ensure quality, safety, and sustainability. This guide details the requirements for Smart City playground projects.
Smart City Mission Overview
Mission Objectives
- Provide core infrastructure
- Clean and sustainable environment
- Quality of life enhancement
- Smart solutions and technology
- Citizen-centric services
Playground Component
Playgrounds fall under: - Area-based development (ABD) - Pan-city initiatives - Public space improvements - Health and wellness infrastructure
Budget Allocation
| Component | Typical Allocation |
|---|---|
| Core Infrastructure | 60-70% |
| Social Infrastructure | 20-30% |
| Parks & Playgrounds | 5-10% |
Smart City Playground Standards
Design Philosophy
Inclusive Design: - Universal accessibility - Multi-generational use - Gender-neutral facilities - Sensory-friendly elements
Sustainable Features: - Recycled materials where possible - Low maintenance requirements - Water-efficient landscaping - Solar lighting options
Smart Elements: - Usage monitoring (optional) - Digital signage - Emergency call points - Surveillance integration
Space Planning Standards
| Zone | Area Allocation |
|---|---|
| Children's Play (2-5 yrs) | 15-20% |
| Children's Play (5-12 yrs) | 25-30% |
| Fitness/Adult Zone | 20-25% |
| Green/Passive Areas | 20-25% |
| Circulation/Amenities | 10-15% |
Need Government & Institutional Supply?
CBM IMPEX is a Bangalore-based B2B supplier of government, tender and GeM supply across Karnataka — genuine products, professional installation, and after-sales support.
Equipment Specifications
General Requirements
| Parameter | Specification |
|---|---|
| Design Life | Minimum 10 years |
| Safety Standard | IS 15312:2016 |
| Accessibility | IS 16148 compliant |
| Material | Non-toxic, certified |
| Coating | UV and weather resistant |
| Warranty | Minimum 5 years structure |
Children's Play Equipment
Category A: Toddler Equipment (Age 2-5)
| Equipment | Specifications |
|---|---|
| Spring Riders | Height <600mm, soft seat |
| Small Slides | Height <1000mm, enclosed sides |
| Toddler Swings | Bucket seat, max arc 1.2m |
| Sand Play | Contained, covered option |

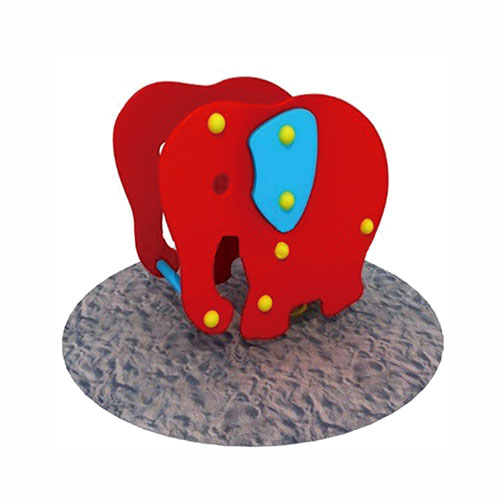

Recommended Products: - Duck Rider - Elephant Rider - Horse Rider - Rabbit Rider
Category B: Primary Equipment (Age 5-12)
| Equipment | Specifications |
|---|---|
| Swings | Max height 2.5m, belt/flat seat |
| Slides | Height 1-2.5m, 400mm+ width |
| See-saws | 2-4 seaters, dampers |
| Merry-go-rounds | Max speed limited |
| Climbing | Max 2m height |
Recommended Products: - Swings - See-Saws - Merry-Go-Rounds - Monkey Bars
Category C: Adventure Equipment (Age 8-14)
| Equipment | Specifications |
|---|---|
| Multi-play Systems | Integrated structures |
| Climbing Walls | Max 3m height |
| Net Structures | Certified rope/cable |
| Challenge Courses | Age-appropriate |
Recommended Products: - Spider Web - Twirly Climber - Zig-Zag Climber - Funstation Models
Outdoor Fitness Equipment
Essential Stations:
| Equipment | Quantity | Specs |
|---|---|---|
| Cardio (elliptical/walker) | 3-4 | Outdoor rated |
| Upper body (bars/press) | 2-3 | Multi-user |
| Lower body (leg press) | 2 | Weather resistant |
| Core (twister/sit-up) | 2 | Ergonomic |
| Stretch/flexibility | 2-3 | Accessible |
Recommended Products: - Parallel Bars - Monkey Bar Variants - Balance Equipment
Material Specifications
Structural Steel: | Property | Requirement | |----------|-------------| | Grade | IS 2062 E250 | | Tube Wall | Minimum 2mm | | Galvanizing | Hot-dip, 80μm min | | Powder Coating | 60μm min | | Color | RAL standard |
Plastic Components: | Property | Requirement | |----------|-------------| | Material | LLDPE rotomolded | | Wall Thickness | Minimum 6mm | | UV Stabilizer | 3% minimum | | Color Fastness | Grade 6+ | | Toxicity | EN 71 compliant |
Fasteners: | Property | Requirement | |----------|-------------| | Material | SS304 grade | | Type | Tamper-resistant | | Locking | Nylon insert | | Finish | Passivated |
Safety Surfacing Requirements
Smart City Standards
| Parameter | Specification |
|---|---|
| Type | EPDM preferred |
| Thickness | Based on CFH |
| Colors | Multiple (3+ preferred) |
| Certification | IS 16620 |
| Warranty | 5 years minimum |
Coverage Requirements
Fall Zone Calculations:
| Equipment | Zone Extension |
|---|---|
| Static equipment | 1.8m minimum all sides |
| Swings | Arc + 2m front/back |
| Slides | Exit + 2.5m, 1.8m sides |
| Rotating | Perimeter + 2m |
| Climbing | Fall height + 1.8m |
Surface Options
| Type | CFH Capacity | Cost/sq ft | Suitability |
|---|---|---|---|
| EPDM 25mm | 1.5m | ₹280-320 | Low equipment |
| EPDM 40mm | 2.5m | ₹350-400 | Standard equipment |
| EPDM 50mm | 3.0m | ₹400-450 | Tall equipment |
| Rubber tiles | 2.5m | ₹180-280 | Budget projects |
Procurement Process
Tender Framework
Pre-qualification Criteria: - Manufacturing experience (5+ years) - Annual turnover (varies by project size) - Previous government experience - Quality certifications (ISO) - Technical capability
Bid Evaluation:
| Criteria | Weightage |
|---|---|
| Technical Compliance | 40% |
| Experience | 20% |
| Quality Certifications | 10% |
| Price | 30% |
Documentation Requirements
Technical Bid: 1. Company profile 2. Manufacturing facility details 3. Test reports and certifications 4. Product catalog with specs 5. Installation methodology 6. Quality assurance plan 7. After-sales service proposal
Commercial Bid: 1. Itemized BoQ pricing 2. Tax breakdowns 3. Transportation costs 4. Installation charges 5. AMC rates 6. Warranty terms
GeM Integration
Most Smart Cities use GeM for procurement: - Product listing required - Rate contracts available - Direct purchase for small orders - Bidding for large projects
Installation Standards
Foundation Specifications
| Equipment Class | Foundation | Depth | Grade |
|---|---|---|---|
| Light (<100 kg) | 400x400mm | 450mm | M20 |
| Medium (100-300 kg) | 600x600mm | 600mm | M20 |
| Heavy (>300 kg) | 800x800mm | 750mm | M25 |
| Multi-play | As designed | 750mm+ | M25 |
Anchoring Requirements
- Chemical anchors for post-installation
- J-bolts for new foundations
- Minimum embedment: 150mm
- Grout with non-shrink material
Safety Clearances
| Between Equipment | Minimum Distance |
|---|---|
| Adjacent equipment | 2.0m |
| Equipment and boundary | 2.0m |
| Equipment and pathway | 1.5m |
| Equipment and furniture | 2.0m |
Maintenance Framework
Smart City Approach
Integrated O&M: - Part of overall city maintenance - AMC with equipment supplier - Digital complaint system - Regular audits
Maintenance Schedule
| Activity | Frequency | Responsibility |
|---|---|---|
| Cleaning | Daily | O&M contractor |
| Inspection | Weekly | Supervisor |
| Preventive maintenance | Monthly | Equipment AMC |
| Safety audit | Quarterly | Third party |
| Comprehensive service | Annually | Equipment AMC |
Performance Metrics
| Metric | Target |
|---|---|
| Equipment uptime | >95% |
| Complaint resolution | <48 hours |
| Safety incidents | Zero |
| User satisfaction | >80% |
Smart Features (Optional)
Technology Integration
Usage Monitoring: - People counters - Peak usage analytics - Demographic data - Maintenance triggers
Safety Systems: - CCTV coverage - Emergency call points - Public address - Lighting automation
User Interface: - Digital information kiosk - QR codes for equipment info - Feedback collection - Event announcements
Budget Guidelines
Cost Estimates
| Park Size | Equipment | Flooring | Civil | Total |
|---|---|---|---|---|
| Small (500 sq m) | ₹10-15L | ₹5-8L | ₹3-5L | ₹18-28L |
| Medium (1000 sq m) | ₹20-30L | ₹12-18L | ₹8-12L | ₹40-60L |
| Large (2000 sq m) | ₹40-60L | ₹25-35L | ₹15-25L | ₹80-120L |
Annual O&M Budget
- Equipment maintenance: 5-7% of capital
- Flooring maintenance: 3-5% of capital
- Landscape maintenance: Separate
- Utilities: Based on consumption
