Outdoor LED Display Board in Bangalore
Sunlight-readable, monsoon-proof outdoor LED display boards for building facades, digital billboards, and school or college campuses. CBM IMPEX -- an authorized Specktron channel partner -- designs the structure, supplies IP65-rated LED screens, and installs everything from power to content player, anywhere in Bangalore and Karnataka.
Weather-protected outdoor LED display on a school building facade
Outdoor LED Display Boards We Build
Building Facade Displays
LED display boards mounted on office, hospital, mall, or school facades -- announcements, branding, and promotions visible from the street, day and night.
Digital Billboards & Hoardings
Large-format P6 - P10 advertising screens on rooftops, pylons, and commercial frontage, engineered for wind load and 24x7 operation.
School & College Outdoor Boards
Campus-gate and facade LED display boards for results, admissions, circulars, and event promotion -- replacing printed flex banners permanently. See LED walls for schools.
Gate Arches & Compound Walls
Slim outdoor strips and mid-size boards for entrance arches, compound walls, temples, and community venues -- built to survive dust, rain, and heat.
Brightness & Waterproofing: What Outdoor Duty Actually Requires
An outdoor LED display board fights two enemies: the Bangalore sun and the Bangalore monsoon. Both are solved at the specification stage, not after installation.
Sunlight readability
Direct sun on a screen face demands 4,500 - 10,000 nits of brightness -- five to ten times an indoor wall. We size brightness to your facade orientation: a west-facing LED display board that catches afternoon sun needs more headroom than a shaded north face. Automatic brightness sensors then dim the board after dark so it remains comfortable to read and compliant with traffic-safety expectations.
IP65 sealing
Every outdoor module we supply is IP65-rated: LEDs potted in waterproof compound, sealed mask, gasketed die-cast cabinets, and drainage detailing in the structure. Power supplies and receiving cards sit inside the sealed cabinet or a ventilated rear enclosure.
IP65-rated outdoor LED module -- water beads off the sealed surface
The module above is from our stock -- water beads straight off the sealed face. This is what lets an LED display board run through a Karnataka monsoon for years without a dead pixel patch.

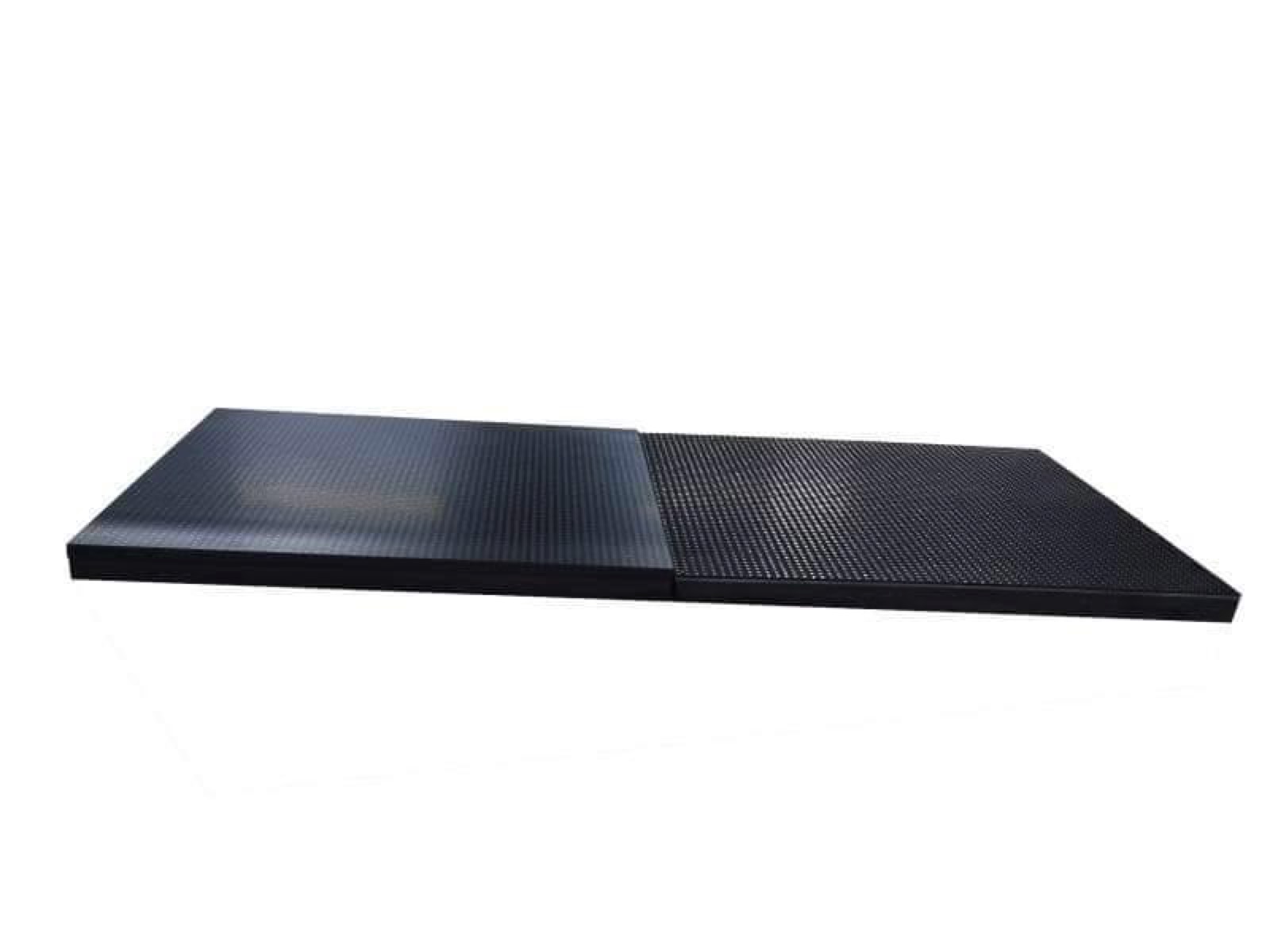

Indoor and outdoor LED module variants with different mask finishes
Outdoor LED Display Board Specifications
| Parameter | Typical Outdoor Specification |
|---|---|
| Pixel Pitch | P4 / P6 / P10 (matched to viewing distance) |
| Brightness | 4,500 - 10,000 nits with auto-dimming sensor |
| Ingress Protection | IP65 front / IP54 rear |
| Refresh Rate | 1920 - 3840 Hz |
| Operating Temperature | -10 to +55 degrees C |
| Lifespan | ~100,000 hours |
| Structure | Powder-coated MS frame, canopy, wind-load engineered |
| Control | Synchronous/asynchronous controller, USB / LAN / 4G / cloud content updates |
Indicative pricing: Rs. 4,500 - 15,000 per sq.ft depending on pitch and cabinet type -- see the detailed LED screen price guide for sample project budgets.
Full-Colour Video Boards vs Single-Colour Scrolling Boards
Not every outdoor requirement needs a video screen. If your content is text -- offers, timings, results, token numbers -- a single-colour or tri-colour scrolling LED board does the job at a fraction of the cost: a 6 x 2 ft scrolling board costs a few tens of thousands of rupees, while the same area in full-colour P6 video runs over a lakh. We supply both and will tell you honestly which your use case needs.
Choose a full-colour LED display board when you need images, video, and brand presence: admissions films on a school facade, product visuals on a shop front, or advertising content on a billboard. Choose a scrolling text board for pure information duty -- pharmacies, token displays, mandi rates, and gate notices. Many campuses sensibly run both: a full-colour facade display and inexpensive text boards at internal blocks.
Two specification notes that save money later. First, serviceability: front-serviceable outdoor cabinets cost slightly more but let technicians swap modules from a ladder instead of scaffolding behind the board. Second, content workflow: asynchronous controllers store content on the board itself and accept updates over LAN, WiFi, or 4G -- so the person updating your board can be in the office, not on the roof with a USB stick.
A Note on Permits & Placement in Bangalore
On-premise displays -- a school showing its own announcements on its own facade, a business displaying its own brand at its own entrance -- are generally treated as signage and need building-owner consent, structural safety, and electrical compliance.
Third-party advertising screens (digital billboards and hoardings that sell ad space) fall under BBMP's outdoor advertising and signage policy, which regulates size, location, luminance, and licensing -- and the rules are enforced. If your project is an advertising asset, budget time for civic permissions before fabrication.
We are a display supplier, not a licensing agency -- but we have been through the process with clients, we flag which category your project falls into during the free survey, and we provide the technical drawings, luminance specs, and structural details that applications require.
From Survey to Switch-On
1. Site Survey
We measure the wall or facade, check viewing distances, ambient light, power availability, and structural feasibility -- free of charge.
2. Design & Quote
You get a pitch recommendation, screen dimensioning, content plan, and an itemised GST quotation with realistic timelines.
3. Installation
Structure fabrication, module mounting, power and data cabling, controller configuration, and full colour calibration by our team.
4. Training & AMC
Operator training on content playback, plus annual maintenance contracts with module-level spares support across Karnataka.
Related: indoor LED video walls | mobile LED vans | all LED display solutions | smart classroom solutions. We install across Karnataka -- see Mysuru, Mangaluru, Hubli-Dharwad, and Belagavi.
Frequently Asked Questions
What is the price of an outdoor LED display board in Bangalore?
Indicative pricing: P10 boards cost Rs. 4,500 - 7,500 per sq.ft, P6 boards Rs. 7,000 - 10,000, and P4 boards Rs. 9,000 - 15,000 per sq.ft including waterproof cabinets, controller, and standard installation. Structure fabrication (MS frame, canopy) is quoted per site. These are market-typical ranges -- request an exact quote after a free survey.
How bright does an outdoor LED screen need to be?
At least 4,500 nits for shaded or north-facing installations, and 5,500 - 10,000 nits for screens that receive direct sunlight. For comparison, indoor walls run 800 - 1,500 nits. Brightness sensors can auto-dim the board at night so it stays readable without dazzling traffic.
Are your outdoor LED display boards waterproof?
Yes. We use IP65-rated modules and sealed cabinets -- fully protected against monsoon rain, dust, and humidity. Modules are potted with waterproof glue, cabinets carry rubber gasketing, and we add a canopy or gutter detail where the facade needs it. The close-up photo on this page shows water beading off a sealed module.
Do I need permission to install an outdoor LED screen in Bangalore?
It depends on content and placement. On-premise displays showing your own institution's information on your own building generally need only building-owner consent and electrical safety compliance. Third-party advertising screens (digital billboards/hoardings) fall under BBMP's outdoor advertising and signage policy and need civic permissions and licensing. We flag the applicable case during the survey and supply the technical documents needed for applications.
What pixel pitch is right for an outdoor display?
Match pitch to viewing distance: P4 for gates and facades viewed from 4 - 8 m, P6 for compound walls and school boards read from 6 - 15 m, and P10 for billboards viewed from 10 m and beyond. Coarser pitch costs less per sq.ft and is invisible at the right distance.
How long do outdoor LED displays last in Indian weather?
Quality outdoor modules are rated around 100,000 hours -- 10+ years of daily operation. The realistic service items are power supplies and occasional modules, which are field-replaceable in minutes. With an AMC (preventive cleaning, sealing inspection before monsoon, recalibration), boards routinely stay in service for a decade.
Get an Outdoor LED Display Board Quote
Free facade survey in Bangalore, brightness and pitch recommendation, and an itemised GST quotation with structure included.
