Interlocking floor tiles have revolutionized playground surfacing by offering easy installation, good safety performance, and cost-effective maintenance. This comprehensive guide helps you choose the right interlocking tiles for your outdoor play area.
What Are Interlocking Floor Tiles?
Interlocking floor tiles are modular flooring units that connect together without adhesives or special tools. They feature puzzle-like edges or pin systems that lock tiles securely while allowing easy installation and replacement.
Types of Interlocking Tiles
| Type | Material | Best For | Price Range |
|---|---|---|---|
| Rubber | Recycled rubber | Playgrounds | ₹150-300/sq ft |
| EPDM Topped | Rubber + EPDM | Premium play areas | ₹200-350/sq ft |
| Plastic | PP/HDPE | Multi-purpose | ₹80-150/sq ft |
| Foam | EVA/PE | Indoor areas | ₹50-100/sq ft |
| Composite | Rubber + plastic | Heavy-duty | ₹180-280/sq ft |
Rubber Interlocking Tiles
Overview
Made from recycled tire rubber, these tiles offer excellent shock absorption and durability. The most popular choice for outdoor playgrounds.
Specifications
| Property | Value |
|---|---|
| Thickness | 25mm, 35mm, 50mm |
| Size | 500x500mm, 1000x500mm |
| Weight | 8-15 kg per tile |
| Fall Height Protection | 1.5-2.5m depending on thickness |
| Lifespan | 8-12 years |
Pros
- Excellent impact absorption
- Weather resistant
- Easy to install and replace
- Made from recycled materials
- Good drainage through gaps
Cons
- Visible seams
- Can shift without proper base
- Edges may lift over time
- Limited color options
- Heavier than alternatives
Best Applications
- School playgrounds
- Apartment common areas
- Community parks
- Sports facilities
- Gym areas
Need EPDM & Rubber Safety Flooring?
CBM IMPEX is a Bangalore-based B2B supplier of rubber flooring and EPDM safety surfacing across Karnataka — genuine products, professional installation, and after-sales support.
EPDM-Topped Rubber Tiles
Overview
Premium tiles with a rubber base and colorful EPDM top layer. Combines durability of rubber with aesthetics of EPDM.
Specifications
| Property | Value |
|---|---|
| Thickness | 25mm, 40mm, 50mm |
| Size | 500x500mm, 1000x1000mm |
| Colors | 15+ options |
| Fall Height Protection | Up to 3m |
| Lifespan | 10-15 years |
Pros
- Colorful options
- Higher safety rating
- UV resistant surface
- Better appearance than plain rubber
- Long-lasting colors
Cons
- Higher cost
- Top layer can wear
- Still shows seams
- Heavier to handle
- Professional installation recommended
Best Applications
- Premium playgrounds
- School kindergarten areas
- Corporate play facilities
- Theme areas in parks
Plastic Interlocking Tiles
Overview
Lightweight modular tiles made from polypropylene or HDPE. Excellent for multi-purpose outdoor surfaces.
Specifications
| Property | Value |
|---|---|
| Thickness | 12mm, 18mm, 25mm |
| Size | 300x300mm, 400x400mm |
| Weight | 0.5-2 kg per tile |
| Load Capacity | Varies by design |
| Lifespan | 5-10 years |
Pros
- Very lightweight
- Easy DIY installation
- Affordable
- Good drainage
- Multiple colors/patterns
Cons
- Limited shock absorption
- Not suitable for tall equipment
- Can become brittle in extreme heat
- May fade over time
- Not ideal for playground safety
Best Applications
- Patio play areas
- Balcony play spaces
- Multi-purpose courts
- Event spaces
- Temporary installations
Choosing the Right Tiles
By Equipment Height
| Equipment | Recommended Tile | Minimum Thickness |
|---|---|---|
| Spring riders, low equipment | Rubber | 25mm |
| See-saws, merry-go-rounds | Rubber | 35mm |
| Swings, slides | Rubber/EPDM | 50mm |
| Multi-play structures | EPDM-topped | 50mm |
By Application
| Setting | Best Choice | Why |
|---|---|---|
| School playground | EPDM-topped rubber | Safety + durability |
| Apartment | Standard rubber | Cost-effective |
| Public park | Heavy-duty rubber | Vandal resistance |
| Home garden | Plastic or rubber | Easy installation |
| Indoor | Foam | Soft, easy clean |
By Budget
| Budget Level | Option | Cost/sq ft |
|---|---|---|
| Economy | Plain rubber 25mm | ₹150-180 |
| Standard | Colored rubber 35mm | ₹180-220 |
| Premium | EPDM-topped 40mm | ₹250-300 |
| Luxury | Custom EPDM 50mm | ₹300-350 |
Installation Guide
Base Requirements
Option 1: Direct on Soil (Not Recommended) - Only for temporary use - Tiles will shift and settle - Drainage issues likely
Option 2: On Compacted Aggregate - 100mm compacted gravel base - Leveled to ±5mm - Suitable for light use
Option 3: On Concrete (Recommended) - 75-100mm concrete base - Level surface (±3mm) - Best stability and drainage - Required for commercial applications
Installation Steps
Step 1: Prepare the Base 1. Mark installation area 2. Excavate if needed 3. Install base material 4. Compact and level 5. Allow concrete to cure (14 days)
Step 2: Plan Layout 1. Start from center or corner 2. Dry-lay tiles to check fit 3. Mark edges for cutting 4. Identify border tile requirements
Step 3: Install Tiles 1. Begin at planned starting point 2. Interlock tiles firmly 3. Use rubber mallet for tight fit 4. Check alignment regularly 5. Install border/edge pieces last
Step 4: Finish 1. Install ramp edges where needed 2. Seal perimeter if required 3. Clean surface 4. Allow settling before heavy use
Tools Needed
- Rubber mallet
- Utility knife (for cutting)
- Measuring tape
- Chalk line
- Level
- Safety gloves
Maintenance
Daily Care
- Sweep debris
- Remove organic matter
- Visual inspection
Weekly Care
- Hose down surface
- Check tile alignment
- Remove stubborn stains
Monthly Care
- Detailed inspection
- Re-seat any lifted tiles
- Check drainage
- Document condition
Annual Care
- Professional inspection
- Replace damaged tiles
- Deep cleaning
- Assess replacement needs
Common Issues and Solutions
| Issue | Cause | Solution |
|---|---|---|
| Tiles shifting | Poor base | Re-install with adhesive |
| Edge lifting | Temperature expansion | Install beveled edges |
| Color fading | UV exposure | Accept or replace |
| Joints opening | Ground movement | Re-seat tiles |
| Water pooling | Drainage blocked | Clear drainage gaps |
Cost Analysis
Material Costs
| Tile Type | Material/sq ft | Installation | Total/sq ft |
|---|---|---|---|
| Basic rubber | ₹120-150 | ₹30-40 | ₹150-190 |
| Colored rubber | ₹150-180 | ₹30-40 | ₹180-220 |
| EPDM-topped | ₹200-250 | ₹40-50 | ₹240-300 |
| Premium EPDM | ₹250-300 | ₹50-60 | ₹300-360 |
Project Cost Examples
Small Play Area (200 sq ft) - Basic rubber tiles: ₹30,000-38,000 - EPDM-topped tiles: ₹48,000-60,000
Medium Playground (500 sq ft) - Basic rubber tiles: ₹75,000-95,000 - EPDM-topped tiles: ₹1,20,000-1,50,000
Large Playground (1000 sq ft) - Basic rubber tiles: ₹1,50,000-1,90,000 - EPDM-topped tiles: ₹2,40,000-3,00,000
Comparing with Other Options
Tiles vs Poured EPDM
| Factor | Tiles | Poured EPDM |
|---|---|---|
| Installation time | 1-3 days | 5-14 days |
| Upfront cost | Lower | Higher |
| Seamless surface | No | Yes |
| Replacement ease | Easy | Difficult |
| Custom designs | Limited | Unlimited |
| Long-term cost | Similar | Similar |
When to Choose Tiles
- Budget is constrained
- Quick installation needed
- Future modifications expected
- DIY installation preferred
- Existing concrete base available
When to Choose Poured
- Premium appearance required
- Custom designs needed
- Maximum safety priority
- Wheelchair accessibility critical
- Long-term investment focus
Compatible Equipment
Interlocking tiles work well with OK Play equipment:
Low Equipment: - Spring Riders - All variants - Stepping Stones - Log Roller

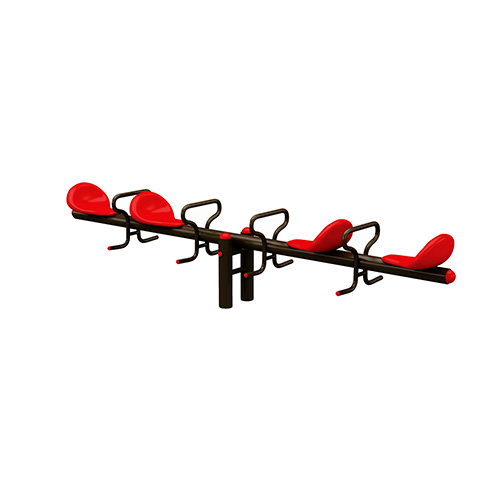

Medium Equipment: - See-Saws - 2 and 4 seater - Merry-Go-Rounds
With 50mm Tiles: - Swings - Monkey Bars
