Safety flooring is the most critical component of any playground installation. Falls account for over 75% of playground injuries, making impact-attenuating surfaces essential. This guide covers all available playground safety flooring options to help you make an informed decision.
Why Playground Safety Flooring Matters
Injury Statistics
- Falls cause 79% of all playground injuries
- Head injuries are most common from falls
- Proper surfacing reduces injuries by up to 90%
- Hard surfaces (concrete, tiles) are most dangerous
Safety Standards
| Standard | Requirement |
|---|---|
| IS 16620 | Indian standard for playground surfaces |
| EN 1177 | European impact attenuation standard |
| ASTM F1292 | American safety standard |
| Critical Fall Height | Maximum safe fall distance |
Overview of Safety Flooring Options
| Option | Safety Level | Cost/sq ft | Lifespan | Maintenance |
|---|---|---|---|---|
| EPDM Poured | Excellent | ₹300-450 | 10-15 years | Low |
| Rubber Tiles | Very Good | ₹180-280 | 8-10 years | Low |
| Synthetic Grass | Good | ₹190-330 | 8-12 years | Medium |
| Rubber Mulch | Good | ₹80-120 | 5-8 years | High |
| Wood Mulch | Moderate | ₹40-60 | 1-3 years | Very High |
| Pea Gravel | Moderate | ₹30-50 | 5-10 years | High |
| Sand | Basic | ₹20-40 | Ongoing | Very High |
Need EPDM & Rubber Safety Flooring?
CBM IMPEX is a Bangalore-based B2B supplier of rubber flooring and EPDM safety surfacing across Karnataka — genuine products, professional installation, and after-sales support.
EPDM Poured Rubber Flooring
Overview
EPDM (Ethylene Propylene Diene Monomer) is a synthetic rubber applied as a seamless surface. It's considered the premium option for playground safety.
Specifications
- Thickness: 25-50mm
- Fall Height Protection: Up to 3 meters
- Color Options: 20+ colors
- Installation Time: 5-14 days
Pros
- Highest safety rating
- Seamless surface (no trip hazards)
- Custom designs possible
- Excellent UV resistance
- Low maintenance
- Wheelchair accessible
Cons
- Highest cost
- Longer installation time
- Requires professional installation
- Not easily relocated
Best For
- School playgrounds with tall equipment
- Public parks with high traffic
- Premium residential projects
- Commercial play centers
Cost Example (1000 sq ft)
| Component | Cost |
|---|---|
| EPDM material | ₹2,00,000 |
| Base preparation | ₹50,000 |
| Installation | ₹75,000 |
| Total | ₹3,25,000 |
Rubber Tiles (Interlocking)
Overview
Pre-fabricated rubber tiles that interlock or adhere to a concrete base. A good balance of safety and cost.
Specifications
- Thickness: 25-50mm
- Tile Sizes: 500x500mm or 1000x1000mm
- Fall Height Protection: Up to 2.5 meters
- Installation Time: 2-5 days
Pros
- Faster installation than EPDM
- Easy to replace damaged sections
- Good impact absorption
- Consistent factory quality
- Can be relocated
Cons
- Visible seams/joints
- Joints can lift over time
- Limited design options
- May shift on improper base
Best For
- Budget-conscious projects
- DIY installations
- Areas needing easy repair
- Temporary or relocatable playgrounds
Cost Example (1000 sq ft)
| Component | Cost |
|---|---|
| Rubber tiles | ₹1,50,000 |
| Base preparation | ₹40,000 |
| Installation | ₹30,000 |
| Total | ₹2,20,000 |
Synthetic Grass with Shock Pad
Overview
Artificial turf with an underlying foam or rubber shock pad. Combines natural appearance with safety.
Specifications
- Pile Height: 30-40mm
- Shock Pad: 20-30mm
- Fall Height Protection: Up to 2 meters
- Installation Time: 3-7 days
Pros
- Natural appearance
- Multi-purpose use
- Good drainage
- Comfortable for play
- Cooler appearance
Cons
- Gets hot in direct sun
- Requires shock pad for safety
- Higher maintenance than rubber
- May need infill replacement
- Limited fall height protection
Best For
- Multi-use areas (play + leisure)
- Aesthetic-focused projects
- Areas with lower equipment
- Sports integration zones
Cost Example (1000 sq ft)
| Component | Cost |
|---|---|
| Synthetic grass | ₹1,00,000 |
| Shock pad | ₹60,000 |
| Base preparation | ₹35,000 |
| Installation | ₹40,000 |
| Total | ₹2,35,000 |
Rubber Mulch (Loose Fill)
Overview
Shredded rubber from recycled tires. An economical option with good impact absorption.
Specifications
- Depth: 150-300mm required
- Fall Height Protection: Up to 3 meters (at 300mm)
- Coverage: 1 cubic foot per 3 sq ft at 150mm
- Installation Time: 1-2 days
Pros
- Lower initial cost
- Easy installation
- Good drainage
- Doesn't decompose
- Recycled material
Cons
- Disperses easily (needs containment)
- Can hide debris/objects
- Regular raking needed
- Not wheelchair accessible
- May need annual top-up
Best For
- Budget projects
- Natural settings
- Areas with borders/containment
- Supplementary to other surfaces
Cost Example (1000 sq ft)
| Component | Cost |
|---|---|
| Rubber mulch | ₹70,000 |
| Containment borders | ₹20,000 |
| Base preparation | ₹15,000 |
| Installation | ₹10,000 |
| Total | ₹1,15,000 |
Engineered Wood Fiber
Overview
Processed wood chips designed for playground use. A natural, budget-friendly option.
Specifications
- Depth: 200-300mm required
- Fall Height Protection: Up to 2.5 meters
- Replacement: Every 1-3 years
- Installation Time: 1-2 days
Pros
- Lowest initial cost
- Natural appearance
- Easy to install
- Biodegradable
- Good drainage
Cons
- Requires frequent replenishment
- Can harbor insects
- Molds in humid conditions
- Not wheelchair accessible
- High ongoing maintenance
Best For
- Very limited budgets
- Natural/rural settings
- Temporary installations
- Low-traffic areas
Pea Gravel
Overview
Small, rounded stones typically 6-10mm diameter. Traditional option still used in some areas.
Specifications
- Depth: 200-300mm
- Fall Height Protection: Up to 2 meters
- Stone Size: 6-10mm
- Installation Time: 1-2 days
Pros
- Very low cost
- Good drainage
- Long-lasting material
- Natural appearance
Cons
- Can cause scrapes
- Ingestion hazard for small children
- Not wheelchair accessible
- Disperses easily
- Can be thrown
Best For
- Budget projects only
- Areas for older children (6+)
- Where other options unavailable
- With adequate containment
Choosing the Right Surface
By Equipment Height
| Equipment Height | Recommended Surface | Minimum Depth |
|---|---|---|
| Under 1m | Any option | Minimum |
| 1-1.5m | Synthetic grass, tiles | Standard |
| 1.5-2m | EPDM, rubber tiles | Standard |
| 2-2.5m | EPDM, tiles (thick) | Maximum |
| Over 2.5m | EPDM only | Maximum |
By Application
Schools: - Primary: EPDM (safety priority) - Secondary: Rubber tiles (budget balance) - Budget: Synthetic grass + pad
Apartments: - Premium: EPDM - Standard: Rubber tiles or combination - Budget: Synthetic grass
Public Parks: - High traffic: EPDM (durability) - Medium traffic: Rubber tiles - Budget: Rubber mulch with containment
Equipment and Flooring Combinations
Match your OK Play equipment with appropriate flooring:
High Equipment (EPDM Required)
Medium Equipment (Tiles/Synthetic Grass OK)
Low Equipment (All Options)
Fall Zone Requirements
Standard Fall Zones
Equipment must have safety surfacing extending: - 6 feet minimum in all directions from equipment - Swing zones: Arc length front and back = 2× chain length + 6 feet - Slide exits: 6 feet from end of slide
Calculating Coverage Area
| Equipment | Fall Zone Size |
|---|---|
| Single swing | 30 sq m minimum |
| Double swing | 45 sq m minimum |
| Multi-play unit | 50-80 sq m |

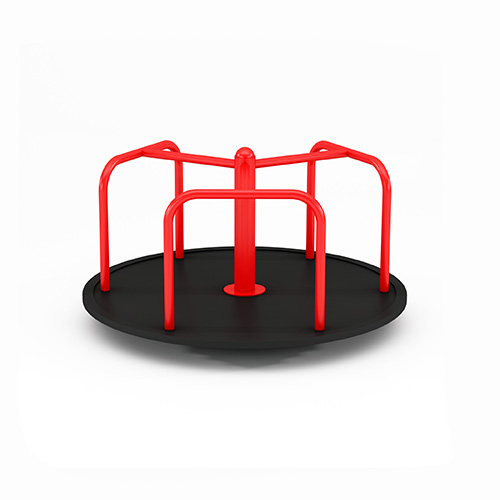

| Merry-go-round | 30 sq m |
| See-saw | 25 sq m |
| Slide (stand-alone) | 20 sq m |
Maintenance by Surface Type
| Surface | Daily | Weekly | Monthly | Annual |
|---|---|---|---|---|
| EPDM | Sweep | Wash | Inspect | Service |
| Tiles | Sweep | Wash | Check joints | Replace damaged |
| Synthetic | Brush | Rinse | Level infill | Deep clean |
| Mulch | Rake | Level | Add material | Replace |
| Wood fiber | Rake | Level | Treat | Replace |
