Interactive LED Panel for Classroom -- The Modern Smart Board
Interactive LED panels have replaced projectors and traditional whiteboards in thousands of schools across India. With bright DLED displays, multi-touch capability, built-in Android OS, and 4K resolution, these panels transform any classroom into a smart classroom. Here is a complete guide to LED smart boards for education.
Not sure which size you need? Compare interactive flat panel sizes →
What Is an Interactive LED Panel?
An interactive LED panel is a large-format touchscreen display that uses LED backlighting technology to produce bright, vivid images. Unlike projectors that project an image onto a wall or screen, an LED panel generates its own light, producing a sharp picture that is visible even in fully lit classrooms with sunlight streaming in.
The term "LED" in interactive LED panels refers to the backlighting system. Modern classroom panels use DLED (Direct LED) backlighting, where LEDs are placed directly behind the entire LCD panel. This provides more uniform brightness compared to edge-lit designs where LEDs are only along the edges of the screen.
An interactive LED panel combines several devices into one:
- High-resolution display: 4K UHD (3840 x 2160) for crisp text and detailed images
- Multi-touch screen: Up to 40 simultaneous touch points for writing, drawing, and multi-user interaction
- Computer: Built-in Android OS with apps, browser, and file management
- Speakers: Built-in audio for video playback and multimedia content
- Whiteboard: Digital whiteboard software for writing, annotating, and collaborating
This all-in-one design means schools can replace their projector, projector screen, external computer, speakers, and whiteboard with a single interactive LED panel mounted on the wall.
LED vs LCD -- Understanding the Technology
There is often confusion about LED vs LCD in interactive panels. Here is the straightforward explanation:
LCD (Liquid Crystal Display) is the technology that creates the image. Liquid crystals are sandwiched between layers of glass and they control how much light passes through to create the picture you see.
LED (Light Emitting Diode) is the technology that provides the backlight. The LCD panel itself does not produce light -- it needs a light source behind it. Modern panels use LEDs for this backlighting.
So when you see "LED interactive panel," it is technically an LCD panel with LED backlighting. All modern interactive panels use this combination. The key differences are in how the LEDs are arranged:
| Backlighting Type | How It Works | Pros | Cons |
|---|---|---|---|
| Edge-lit LED | LEDs placed along the edges of the panel | Thinner design, lower cost | Uneven brightness, dimmer corners |
| DLED (Direct LED) | LEDs spread across the entire back of the panel | Uniform brightness, better contrast | Slightly thicker, higher cost |
| Mini LED | Thousands of tiny LEDs with local dimming zones | Best contrast, deep blacks | Highest cost, limited availability |
The Specktron UDX-S2 Pro uses DLED backlighting, which is the best balance of image quality and cost for classroom use. The uniform brightness means students at every angle get a consistent viewing experience.
Advantages of Interactive LED Panels for Classrooms
1. Visible in Any Lighting Condition
LED panels produce their own light at 350-450 nits brightness, making the display clearly visible even with all classroom lights on and windows open. Projectors typically produce 200-300 nits and wash out in bright rooms, forcing teachers to darken classrooms -- which makes students sleepy and prevents note-taking.
2. Zero Maintenance Costs
Projector lamps cost Rs. 15,000-25,000 and need replacement every 3,000-5,000 hours. Filters need cleaning, and bulbs can burn out unexpectedly. LED panels have no lamps, no filters, and no consumable parts. The panel lasts 50,000+ hours with virtually zero maintenance.
3. No Shadow Problem
With a projector, the teacher's shadow falls on the display whenever they stand near the screen. This is one of the most common complaints in smart classrooms. LED panels eliminate this problem entirely -- the display is self-lit, so nothing blocks the image.
4. Touch Interactivity
Interactive LED panels support multi-touch input. Teachers can write, draw, annotate, zoom, and interact with content using their fingers or a stylus. Multiple students can use the panel simultaneously. This level of interactivity is impossible with a standard projector setup (unless you add an expensive interactive whiteboard).
5. Built-in Smart Features
Modern LED panels like the Specktron UDX-S2 Pro include Android OS, Google Play Store access, WiFi, Bluetooth, and built-in AI tools. Teachers do not need a separate computer -- the panel is a complete computing device.
6. 4K Resolution
4K (3840 x 2160) resolution means text is crisp and readable even from the back of the classroom. Projectors often output at 1080p or lower, and the image quality degrades as the lamp ages. LED panels maintain consistent image quality throughout their lifespan.

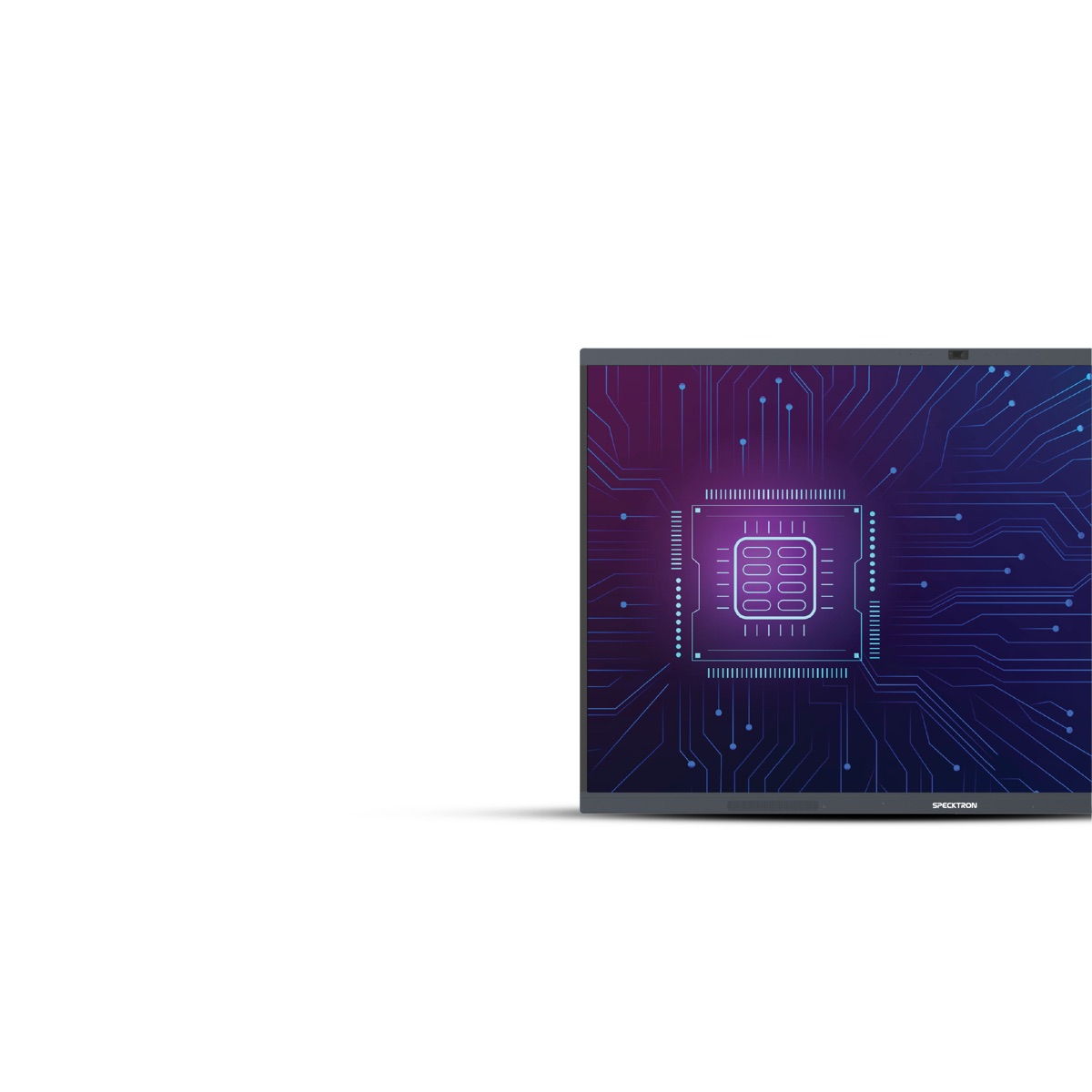

Specktron UDX-S2 Pro -- 40mm ultra-thin profile with DLED backlighting
7. Long Lifespan
LED panels last 50,000-60,000 hours. At 6 hours of daily use for 250 school days per year, that is over 30 years. The electronics will need upgrading long before the display wears out, making it an excellent long-term investment.

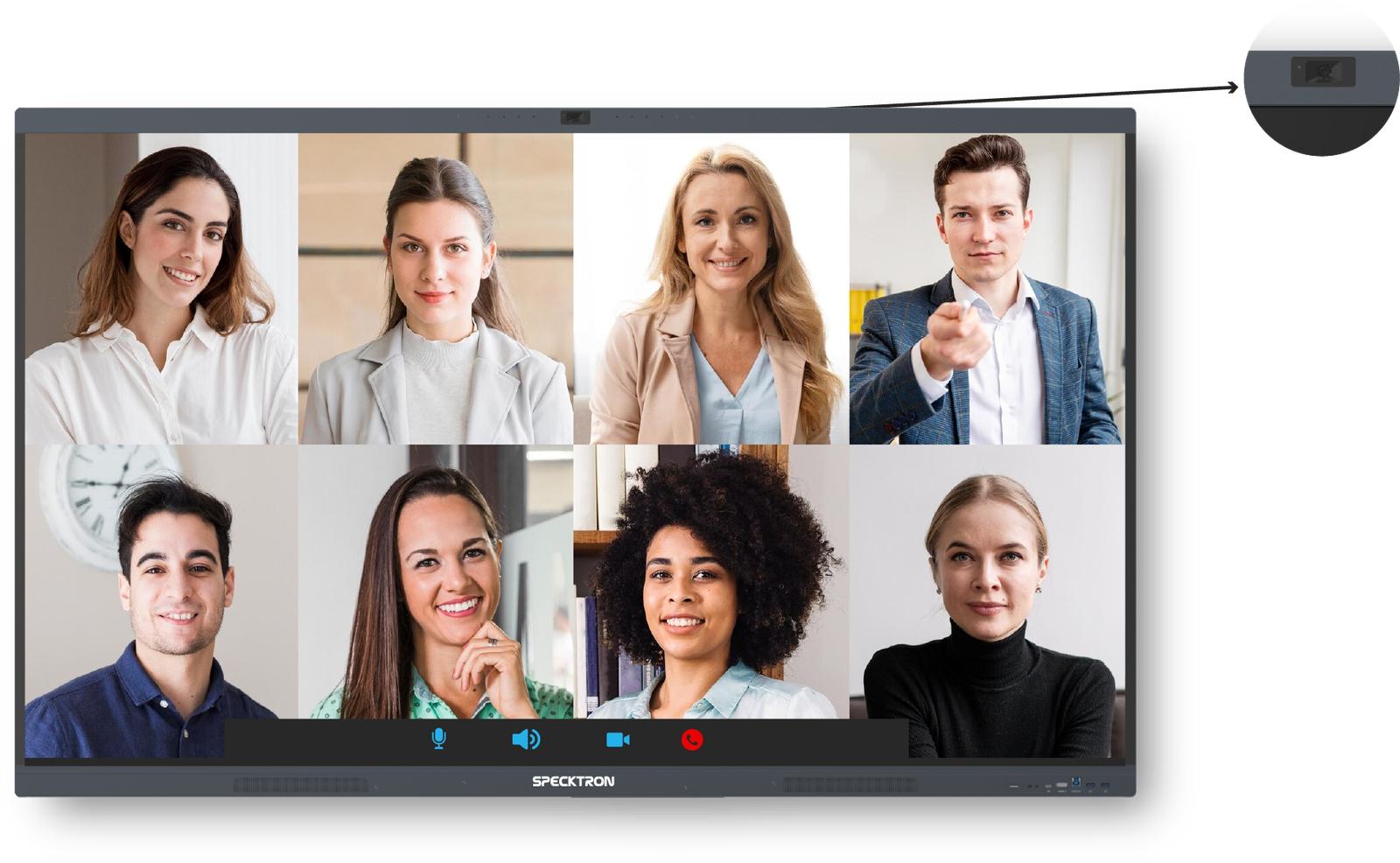

Specktron UDX-S2 Pro -- DLED Interactive Panel
The Specktron UDX-S2 Pro is the interactive LED panel we recommend for classrooms. As an authorized Specktron dealer, we provide these panels with complete installation, training, and warranty support.
65-inch LED Panel
Price: Rs. 1,05,000 - Rs. 1,54,000
Display: 4K UHD, DLED backlight, 60Hz
Touch: 40-point infrared, 8ms response
OS: Android 14, Google EDLA, SparkyAI
Best for: Classrooms with 25-35 students
75-inch LED Panel
Price: Rs. 1,54,000 - Rs. 2,38,000
Display: 4K UHD, DLED backlight, 60Hz
Touch: 40-point infrared, 8ms response
OS: Android 14, Google EDLA, SparkyAI
Best for: Classrooms with 35-50 students
86-inch LED Panel
Price: Rs. 2,24,000 - Rs. 3,64,000
Display: 4K UHD, DLED backlight, 60Hz
Touch: 40-point infrared, 8ms response
OS: Android 14, Google EDLA, SparkyAI
Best for: Large classrooms with 50+ students
98-inch LED Panel
Price: Rs. 4,20,000 - Rs. 7,00,000
Display: 4K UHD, DLED backlight, 60Hz
Touch: 40-point infrared, 8ms response
OS: Android 14, Google EDLA, SparkyAI
Best for: Auditoriums and seminar halls
* All models include 8GB RAM, 128GB storage, WiFi 6, Bluetooth 5.3, USB-C, HDMI, and BIS certification. Prices include installation and training from CBM IMPEX.
Key Features of the Specktron LED Interactive Panel
DLED Backlighting with 4K Resolution
Direct LED backlighting provides uniform brightness across the entire screen. Combined with 4K UHD (3840 x 2160) resolution, text is sharp and images are vivid even from the back of the classroom. No dark corners or brightness hotspots.
40-Point Multi-Touch
Infrared touch technology with 40 simultaneous touch points and 8ms response time. Write naturally with your finger or the included passive stylus. Multiple students can interact with the panel at the same time for collaborative activities.
Google EDLA Certified Android 14
Full access to Google Play Store, Google Classroom, YouTube, Google Meet, and thousands of educational apps. EDLA certification means official Google updates and guaranteed app compatibility -- not sideloaded APKs that may break.
SparkyAI Built-in
Integrated AI assistant that generates quizzes, creates lesson plans, summarizes PDFs, and searches for educational videos and images. No subscription fee, no external device needed. Saves teachers 2-3 hours per week on preparation.
Dual OS: Android + Windows
Runs Android 14 natively. Add an optional OPS PC module (Rs. 25,000-65,000) to run Windows alongside Android. Switch between operating systems with one tap. Access Windows-only software like MS Office, Tally, and specialized educational programs.
Comprehensive Connectivity
WiFi 6 and Bluetooth 5.3 for wireless connectivity. USB 3.0 x4, USB-C x2, HDMI 3 in / 1 out, VGA, RS232, and RJ45 for wired connections. Connect laptops, cameras, document scanners, and other peripherals easily.
Frequently Asked Questions
What is an interactive LED panel?
An interactive LED panel is a large touchscreen display that uses LED (Light Emitting Diode) backlighting technology to produce bright, clear images. It combines a high-resolution LED display with multi-touch capability, an Android operating system, and built-in speakers -- essentially replacing projectors, whiteboards, and computers with a single device. Modern panels like the Specktron UDX-S2 Pro use DLED (Direct LED) backlighting for uniform brightness across the entire screen.
What is the difference between LED and LCD in interactive panels?
LED and LCD are related technologies. LCD (Liquid Crystal Display) is the display technology that creates the image, while LED refers to the backlighting that illuminates the LCD screen. Older panels used CCFL (fluorescent) backlighting, while modern panels use LED backlighting which is brighter, more energy-efficient, and longer-lasting. DLED (Direct LED) panels like the Specktron UDX-S2 Pro have LEDs directly behind the entire screen for more uniform brightness compared to edge-lit LED panels.
How much does an interactive LED panel cost for a classroom?
Interactive LED panel prices for classrooms start at approximately Rs. 1,05,000 for a 65-inch model. A 75-inch LED panel costs Rs. 1,54,000 - Rs. 2,38,000, an 86-inch costs Rs. 2,24,000 - Rs. 3,64,000, and a 98-inch costs Rs. 4,20,000 - Rs. 7,00,000. Prices include the panel with 4K display, Android OS, touch capability, and vary based on brand, features, and order quantity.
Is an LED panel better than a projector for classrooms?
Yes, interactive LED panels are significantly better than projectors for classrooms. LED panels offer brighter images that are visible in daylight without darkening the room, require zero lamp replacements (saving Rs. 15,000-25,000 per lamp), have no shadow issues when the teacher stands near the screen, provide touch interactivity, include built-in Android OS and apps, and last 50,000+ hours compared to a projector's 3,000-5,000 hour lamp life. The total cost of ownership over 5 years is often lower than a projector setup.
How long does an interactive LED panel last?
Interactive LED panels typically last 50,000 to 60,000 hours of use. In a school environment with 6-8 hours of daily use for 250 days per year, that translates to 25-40 years of panel life. The electronics and software will likely need upgrades before the display wears out. With proper care (avoiding physical impact, keeping ventilation clear, using surge protectors), an LED panel is a long-term investment.
What size LED panel is recommended for a classroom?
For a classroom with 25-35 students, a 65-inch LED panel is adequate. For 35-50 students, a 75-inch panel provides better visibility from back rows. For large classrooms with 50+ students, an 86-inch or 98-inch panel is recommended. The key rule is that the farthest student should be no more than 6 times the screen diagonal away from the display. For example, with a 75-inch panel (190cm diagonal), the last row should be within 11.4 meters.
Get an Interactive LED Panel for Your Classroom
Authorized Specktron dealer with DLED interactive panels starting at Rs. 1,05,000. Installation, training, and 3-year warranty included. Contact us for a demo or quote.
